TAISAW钛硕|TST嘉硕Differential output Crystal Oscillator - TW0692AAAE40

l  The frequency stability includes initial frequency tolerance, temperature variation, and supply variation

l  This part can be achieved with a high frequency, low jitter reference clock for the communication equipment.

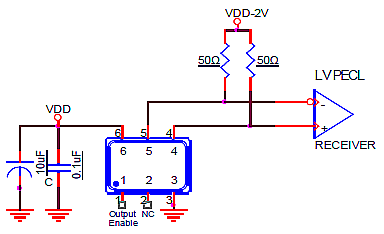

Test circuit Diagram

l  Stability  //operating temperature +/-30ppm // -40~85 °C

l  Low jitter performance




Application

l   Optical transmission device, 200G

l  Communication base station

l  Network equipment (Router, Switch, Optical module, etc.)

l  Test and Measurement Equipment, Factory Automation

Features

l  Surface Mount Seam Weld Package

l  Excellent Reliability Performance

l  Good Frequency Perturbation and Stability over temperature

l  Moisture Sensitivity Level (MSL) : Level-1

Output Waveform





Package Outline
